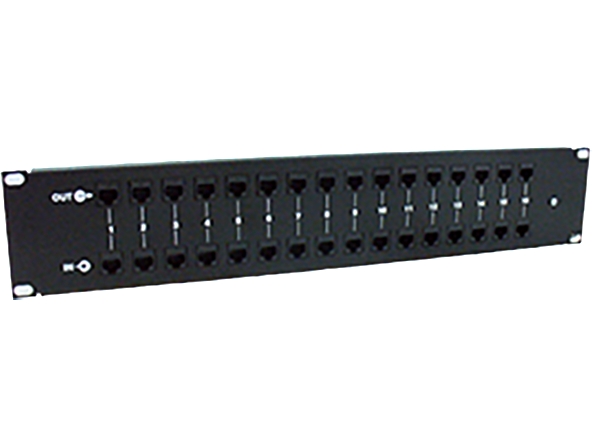

19in Patch Panel
• 100Mbps / 1Gbps / 10Gbps network protection
• 19in rack mounting
• 12 or 24 ports
• Shielded RJ45 input/output
• Maximum continuous operating voltage, Uc: 8Vdc
• Impulse current, Iimp: 500A
• Voltage protection level, Up: 20V
• Compliant with IEC 61643-21 and UL497A

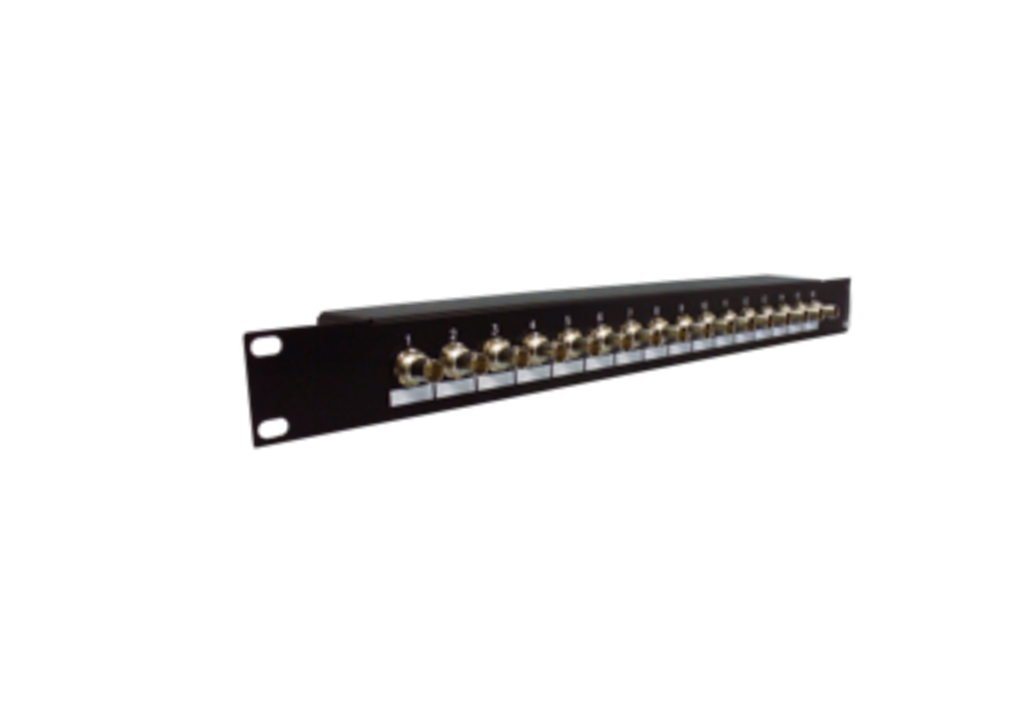

• 19in rack mounting
• 16 or 32 ports
• Front input/output: RJ45, BNC
• Maximum continuous operating voltage, Uc: 7.5Vdc
• Nominal discharge current, In: 500A
• Common/differential mode voltage protection level, Up: 20V
• Compliant with IEC 61643-21 and UL497B
