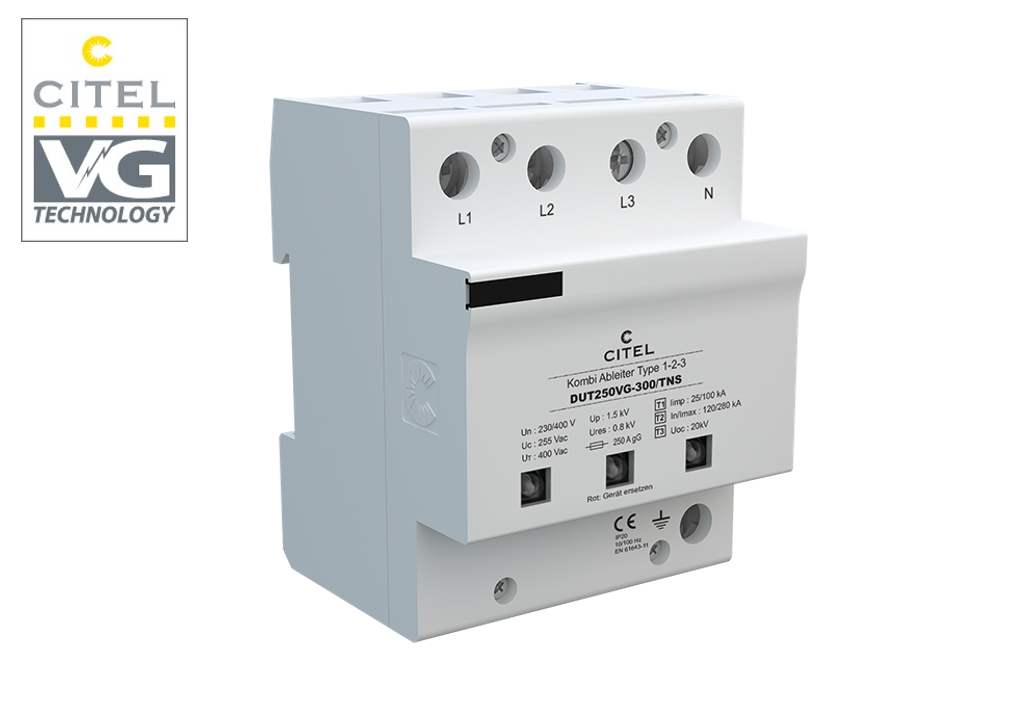

• Type 1+2+3 AC SPD
• AC operating voltage: 220–380Vac, 3P+N+Gnd
• Maximum continuous operating voltage (L-N, L-Gnd), Uc: 255Vac
• No leakage current or follow current
• Impulse current (10/350μs), Iimp: 25kA
• Maximum discharge current (8/20μs), Imax: 100kA
• Combination wave (1.2/50μs, 8/20μs), Uoc: 6kV
• Voltage protection level, Up: 1.5kV
